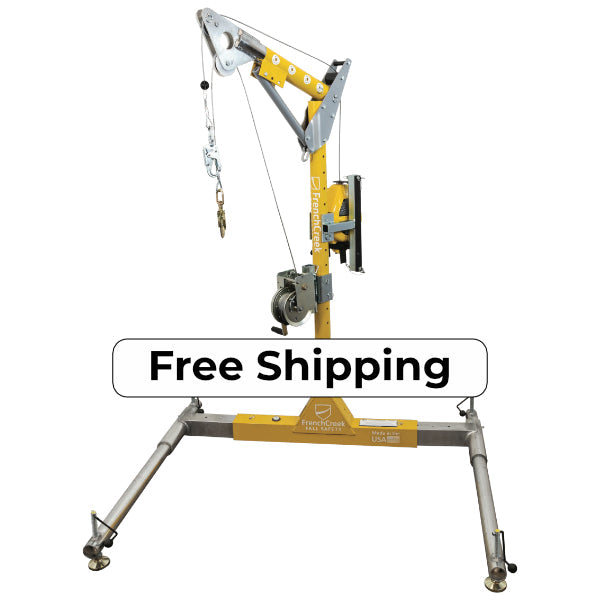

FrenchCreek PD-CSKit2 Portable Confined Space Davit System

The PD-CSKit2 is FrenchCreek's Portable Davit system for confined space entry and rescue. This system utilizes the R50G 3-way winch and the MW50G winch. This configuration provides fall protection and backup rescue. If the main rescue device, the MW50G, should fail the entrant can still be rescued via the R50G 3-way winch.

The easiest way to think about it is that the PD-CSKit2 is the Davit version of the S50G-M7 tripod rescue system.

PD-CSKit2 System Includes:

• PD1 Davit Mast Assembly
• PD2 Davit Base Assembly
• PD3 Mounting Bracket for R50G
• PD4 Mounting Bracket for MW50G
• R50G - 50' 3-Way Fall Protection & Backup Winch (Click Here for Details)
• MW50G - 50' Rescue Winch (Click Here for Details)
• ANSI rated weight capacity is 420 pounds

Davit Mast Specs

• Adjustable offset of 12" - 30"
• Height adjustments of 79.25" - 97"
• Primary and secondary pulleys
• Attachment points for mechanical devices
• Swivels clockwise or counterclockwise for easier exit/rescue
• Made of powder coated aluminum and steel
• Weight 33 lbs

Davit Base Specs

• Adjustable width from 36" - 60"
• Integrated bullseye level
• Tool-free height adjustment
• Made of powder coated aluminum and steel
• Weighs 58 lbs
